Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Name: Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation
Brand: Zhangjiagang Filterk Filtration Equipment Co.,Ltd
Price: 25.00 USD
Availability: InStock

모든 제품

카트리지 필터 원자
(53)

기름 안개 필터 원자
(35)

유압 기름 필터 원자
(54)

가스 필터 원자
(34)

공기 정화 장치 카트리지
(31)

Coalescer 필터 원자
(9)

가스 터빈 여과기
(8)

산업 먼지 여과기
(21)

공기 압축기 필터 카트리지
(17)

진공 펌프 필터 원자
(9)

액체 필터 카트리지
(8)

미립자 공기 정화 장치
(7)

편평한 패널 여과기
(6)

보충 필터 원자
(27)

주름을 잡은 여과 백
(15)

인증

고객 검토

기술설계 기능은 아주 강합니다, 나는 항저우 은총의 질 그리고 서비스에 아주 만족합니다.

—— 바바라 Owens

FILTERK는 우리의 석탄 fird 보일러 baghouse 체계를 먼지 자동차 배기 가스 제어를 여과기에 관하여 효과적인 해결책을 우리의 회사를 제공합니다!

—— Steve Haselton

제가 지금 온라인 채팅 해요

Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

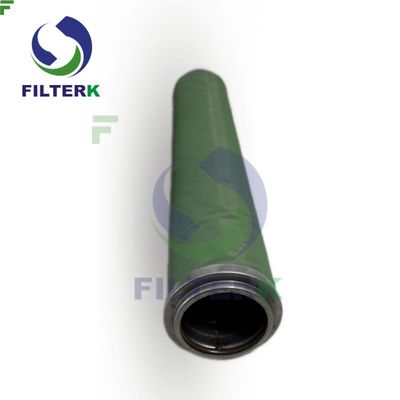

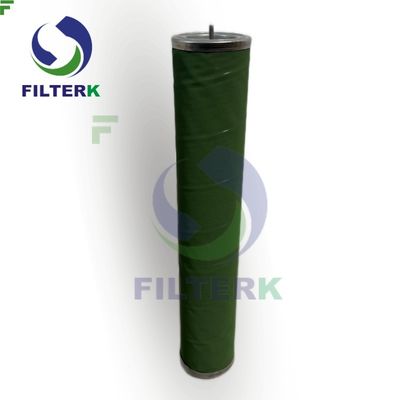

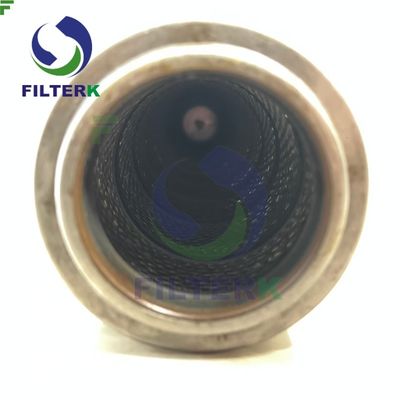

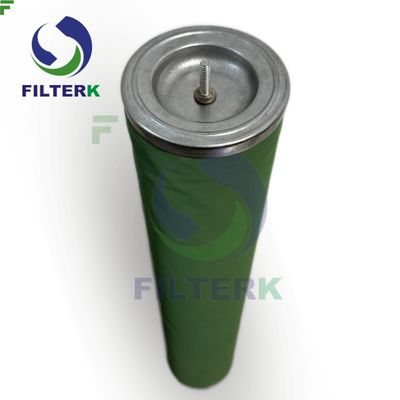

큰 이미지 : Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

제품 상세 정보:

원래 장소:	중국 장수
브랜드 이름:	FILTERK

결제 및 배송 조건:

최소 주문 수량:	1
가격:	$20-30

접촉

Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

설명

여과 효율:	99%	다공성:	0.3u
무게:	0.8	재료:	스테인레스 스틸
외경:	150	내 직경:	88
높이 옵션:	600, 800, 900, 1000, 1150	작동 온도:	5 ° C -80 ° C
뼈대 재질:	탄소강은 천공되었습니다	필터 재료:	테플론
필터 재료 양식:	주름, 포장	작동 압력:	최대 1.0 MPa
최대 온도:	80 ° C	최소 온도:	-30 ° C
액체 에어로졸 효율:	0.01 μm 이상의 경우 99.9%
강조하다:	99% Efficiency Coalescing Filter Element , 0.3u Porosity Cartridge Filter Element , Gas/Liquid Separation Stainless Steel Filter Element

Stainless Steel Coalescing Filter Element for Gas/Liquid Separation, Dehydration and Removal

Our high-performance stainless steel coalescing filter element is designed for efficient gas/liquid separation, dehydration, and removal of liquid aerosols and contaminants from compressed air and gas systems. The filter media features a multi-layer coalescing structure that captures and merges fine liquid droplets into larger ones, which are then drained away, ensuring clean, dry, and high-quality gas output.

Key Features

Durable Construction: Made of stainless steel for excellent corrosion resistance and long service life, suitable for harsh environments.
Efficient Coalescence: Advanced coalescing technology effectively removes oil, water, and other liquid aerosols with high separation efficiency.
Wide Compatibility: Ideal for compressed air, natural gas, biogas, and other gas applications requiring dehydration and purification.
Low Pressure Drop: Optimized design minimizes energy consumption and maintains system efficiency.
Easy Maintenance: Replaceable filter element simplifies upkeep and reduces operating costs.

Applications

Compressed air systems
Natural gas dehydration and purification
Biogas processing
Industrial gas pipelines
Pneumatic equipment protection

Specifications

Material: Stainless steel (housing and media support)
Filtration Efficiency: Up to 99.9% for liquid aerosols (0.01 μm and larger)
Operating Pressure: Up to 1.0 MPa (standard, customizable for higher pressures)
Operating Temperature: -30°C to 80°C
Available in various sizes and micron ratings for custom needs.

Enhance your gas system's reliability and performance with our robust coalescing filter elements. Contact us for customized solutions!

Technical Parameters

Parameter	Details
Filter Element Size	Outer Diameter: 150 Inner Diameter: 88
Height	600, 800, 900, 1000, 1150
Operating Temperature	5°C - 80°C
Skeleton	Carbon Steel Perforated
Filter Material	Teflon
Filter Material Form	Pleated Wrapped
Performance Characteristics	Strong Hydrophobicity, Strong Oil Permeability Large Filter Area, Simple Structure, Easy to Install
